Polarization State Generator

» Product Description

GouMax LSA-200P module is a customized polarization state controller, used to generate special polarization states for four-state method PDL measurements. GouMax high-speed PDL measurement system consists of a high-speed sweeping tunable laser TLS-1200, a polarization state controller LSA-200P module and and a multi-function power meter module, as shown in Figure 1 below. TLS-1000 provides linearly polarized laser, and single-channel LSA-200A measures insertion loss spectra at each polarization state generated by LSA-200P module.GouMax DLL function will calculate PDL based on insertion loss spectra.

Please see LSA-200U PDL tester, which is the integration module of LSA-200P with a single channel LSA-200A.

LSA-200P module can provide the following functions:

It generates 4 special polarization states from a linearly polarized laser
It synchronizes with TLS-1200 and LSA-200A (or LSA-200B/LSA-200S)

PDL-Measurement

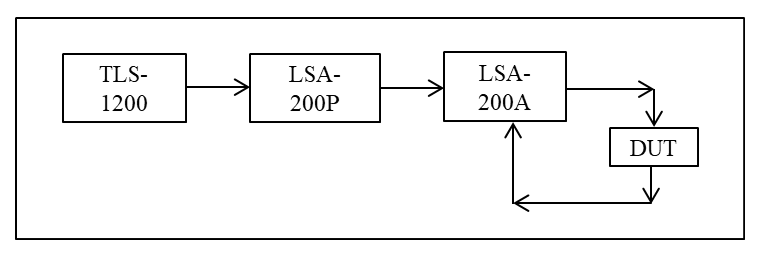

Figure 1: PDL Measurement

» Key Features

High-speed operation
Synchronization with TLS-1200 and LSA-200 modules
High-speed PDL measurements

» Key Applications

Provide 4 special polarization states
Quick PDL measurements

» Typical Specifications

LSA-200P module support O-band or C-band wavelength ranges.

For details, please request specifications from GouMax Sales.

Item	Unit	O-band	C-band
Wavelength Range	nm	1250~1350	1510~1600
Insertion Loss	dB	< 1.3	< 1.1
Max Input Optical Power	dBm	> 23	> 23
Polarization Repeatability	Deg.	< ±1.0	< ±1.0
Input Polarization	-	Slow axis	Slow axis
Return Loss	dB	55	55
Operating Temperature Range	°C	15 ~ 35	15 ~ 35
Storage Temperature Range	°C	-40 ~ 80	-40 ~ 80

» Other Information

Download product specification
Please contact our Sales for your requirements
